Rust-Resistant for Coastal Markets
High humidity and salt air destroy cheap hardware fast. MXOHO specifies nickel-plated, stainless or anti-corrosion coated hardware, tested through a salt-spray cycle before shipment.
Board options
Moisture-proof MDF, plywood, particle board
E0 / E1 emission grade
Finish
Melamine, PET, acrylic, UV lacquer
Colour matched to your sample
Edge banding
PVC / ABS, 1.0–2.0 mm
Fully sealed on all edges
Hardware
DTC, Blum, Hettich or nominated brand
Anti-corrosion coated
Customisation
Size, colour, layout, hardware, logo, packaging
Drawing approval before production
MOQ
1 × 20ft container
Mixed models accepted
Lead time
25–35 days
After deposit and drawing approval
Packing
Export carton, corner protection, moisture barrier
Reinforced edges
Brands We Source
Standard builds use DTC; premium builds can be specified with Blum or Hettich. Mixed-brand orders are accepted within one container.
Load Testing
Hinges and runners are cycle-tested (50,000+ open/close) and load rated, with test reports issued alongside shipping documents.
Specification Sheet
| Parameter | Standard | Notes |
|---|---|---|
| Hinges | Soft-close, 110° / 165° | DTC / Blum / Hettich |
| Drawer runners | Ball-bearing or concealed | Load rated to 35 kg |
| Handles | Aluminium, zinc alloy, stainless | Multiple finishes and lengths |
| Dampers | Soft-close piston | For doors and drawers |
| Lift-up systems | Gas strut or hinged stay | For overhead cabinets |
| Anti-corrosion | Nickel / stainless / coated | Salt-spray tested |
| Cycle rating | 50,000+ operations | Test report supplied |
| Packing | Carton, individual bagging | Labelled by SKU |
| Hinge options | 110° full-overlay, 165° wide-angle | Clip-on, 3-way adjustable |
| Runner load | 35 kg (ball-bearing) / 40 kg (concealed) | Tested to 50,000 cycles |
| Handle lengths | 96 / 128 / 160 / 192 / 320 mm | C-to-C hole spacing |
| Damper force | Doors: 4–8 Nm, Drawers: 15–25 N | Adjustable on site |
| Salt-spray rating | 96 h (coated) / 240 h (stainless) | Reports per batch |
| MOQ | 5,000 pcs per SKU | Mixed pallet available |
| Japan F★★★★ | F★★★★ (JIS A 1460 four-star) | Lowest emission tier for the Japanese market |
Product Detail Gallery
Salt-spray tested hinges, runners, dampers and lift-up systems, supplied by SKU.

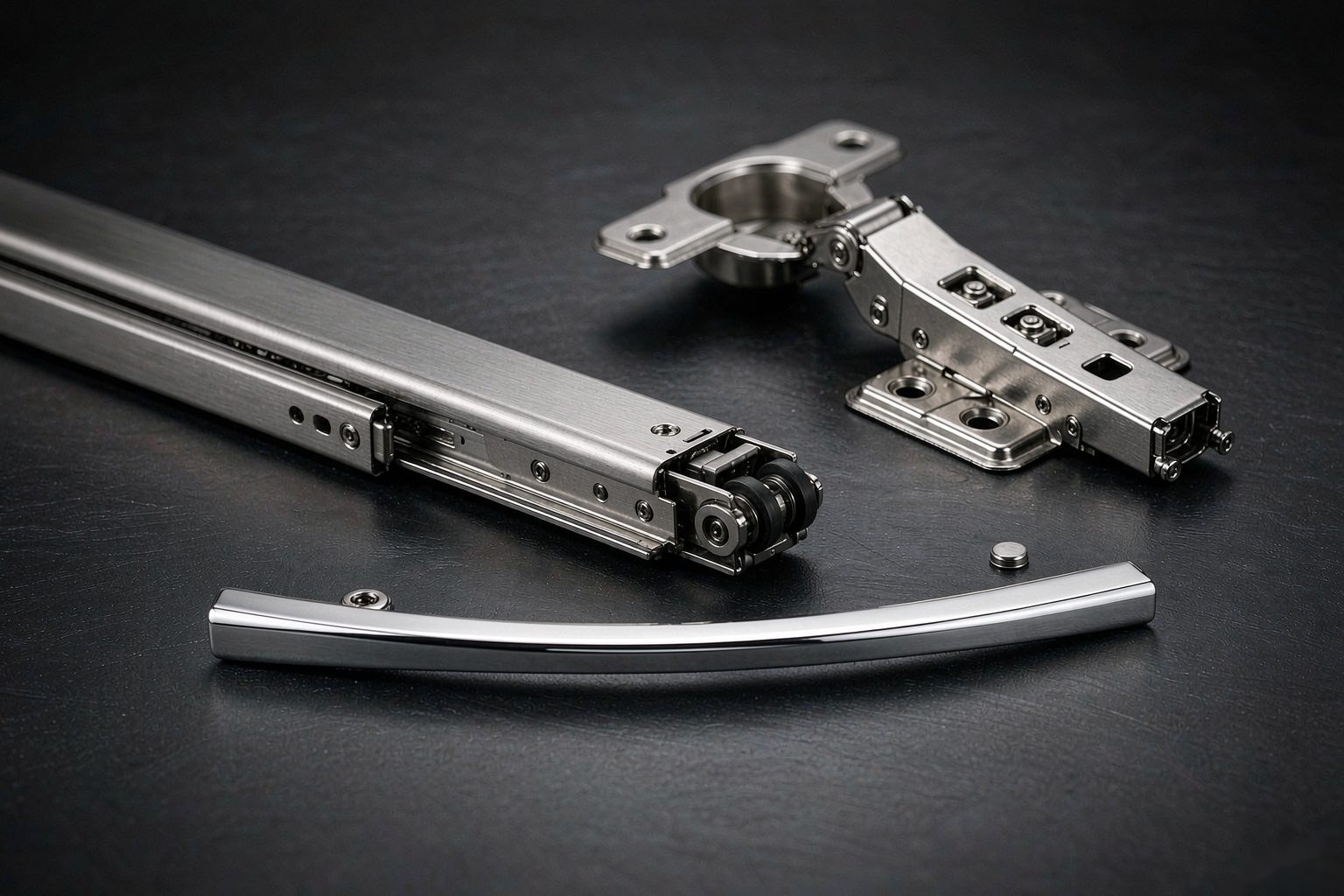

Hinge, concealed runner and aluminium handle
Hardware installed on a finished kitchen run

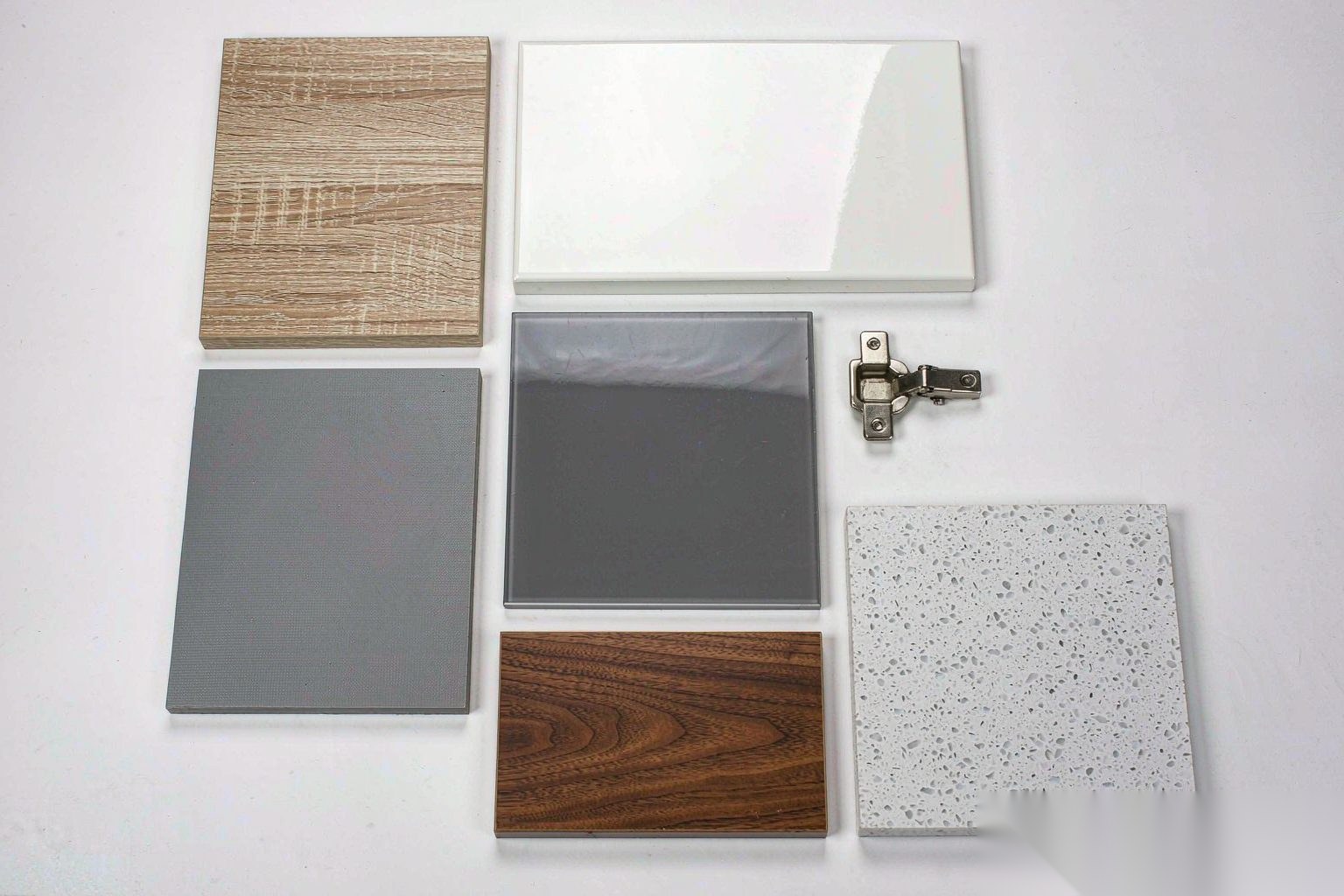

Hardware finish and board colour matching
Cycle testing and inspection before packing
Individual bagging and SKU labelling
Hardware cartons consolidated for shipment
Official Warranty Terms
Cabinet carcass and doors are warranted for 3 years; hardware (hinges, runners, dampers) for 5 years against manufacturing defects. Warranty covers replacement parts; it does not cover wall or electrical works, or damage from misuse, flooding or unauthorised modification.
Related Products
Request pricing for this product range
Tell us your wall dimensions, finish preference and target container volume. We reply within one business day with an itemised quote.
