Installation Guide

Cabinet Installation Manual & Assembly Drawings

Free PDF manuals, assembly drawings and hardware fitting instructions for every MXOHO cabinet range — written for overseas installation teams.

Download Centre

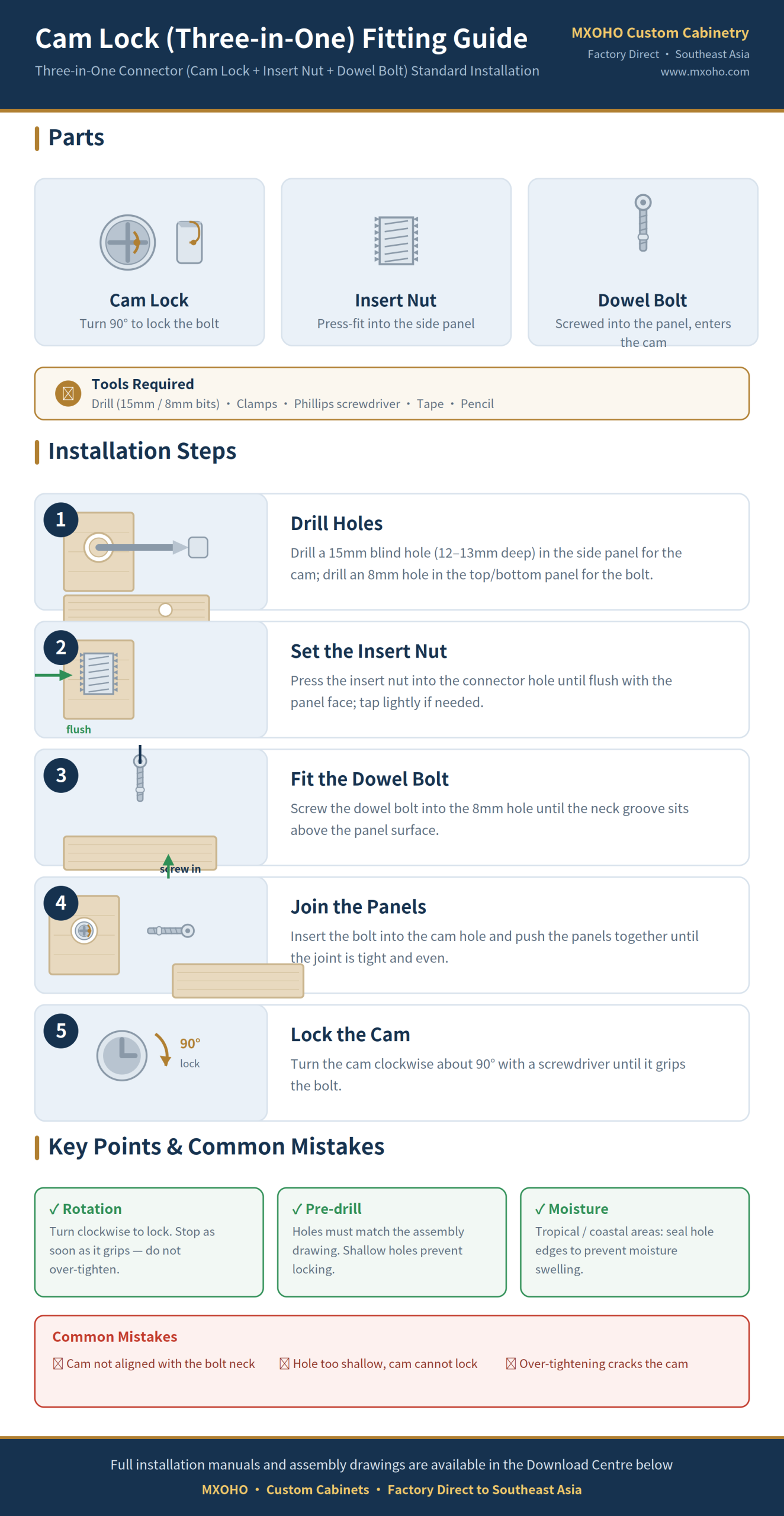

Step-by-step diagram of cam lock (three-in-one) fitting installation for custom cabinets: drill, set insert nut, fit dowel bolt, join panels, lock the cam
Cam lock (three-in-one) fitting — standard installation flow · Long-press to save and share with your site team

Every manual below covers tool lists, step-by-step assembly, wall levelling, moisture treatment, hardware adjustment and tropical-climate precautions. All files are free to download and print for your site team.

PDF

Kitchen Cabinet Installation Manual

Covers base unit assembly, wall cabinet hanging, countertop fitting, sink and hob cut-outs, door alignment and damp-proof sealing for tropical kitchens.

Download PDF
PDF

Wardrobe Installation Manual

Step-by-step wardrobe assembly: carcass build-up, shelf and rail installation, back panel fixing, soft-close hinge and drawer runner adjustment.

Download PDF
PDF

TV Cabinet & Sideboard Installation Manual

Low-cabinet assembly for TV units and sideboards, including wall-anchoring, cable management routing and levelling on uneven flooring.

Download PDF
PDF

Hardware Mounting Guide

Hinges, drawer runners, handles and soft-close dampers — fitting positions, screw gauges and the full adjustment sequence with diagrams.

Download PDF
PDF

Tropical Installation & Moisture-Proof Tips

Written for Southeast Asia: how to gap panels for airflow, treat cut edges, avoid direct floor contact and ventilate cabinets in high-humidity coastal locations.

Download PDF
?

Need a Project-Specific Drawing?

For OEM / ODM orders we issue custom assembly drawings matched to your exact cabinet dimensions and hardware selection.

Request Drawings

On-Site Installation Notes for Overseas Teams

Before You Start

  • Unpack and check all cartons against the packing list before signing the delivery note.
  • Let panels acclimatise in the room for 24–48 hours before assembly.
  • Verify the wall is level and dry — never install against fresh plaster or a damp wall.
  • Confirm electrical and plumbing outlet positions before drilling.

Moisture Protection

  • Seal all cut edges with edge-banding or waterproof sealant immediately after cutting.
  • Keep a 10 mm expansion gap between the cabinet and the wall.
  • Use adjustable feet or a waterproof plinth — never sit carcasses directly on a wet floor.
  • In coastal or high-humidity areas, leave ventilation gaps behind tall units.

Assembly Quality Checks

  • Check all cam locks and dowels are fully seated before standing the carcass upright.
  • Test every hinge and runner through a full cycle before fitting doors.
  • Adjust door gaps to an even 2–3 mm before final tightening.
  • Re-check all fixings on the second day to allow for panel settling.

After Installation

  • Wipe all surfaces with a dry cloth — do not flood panels with water.
  • Record the installation date and keep the packing list for warranty claims.
  • Advise the end client to keep doors and drawers slightly open for the first week in new builds.
  • Report any transit damage within 7 days with photographs and carton labels.

Need a manual in another language, or a custom drawing?

Our engineering team can issue manuals in Simplified Chinese and provide OEM drawings matched to your project specification.

WhatsApp the Technical Team Request a Quote

Manuals are issued free of charge to all MXOHO dealers and project partners.
