Built for Hot, Humid Climates
Every MXOHO kitchen cabinet is specified around one engineering priority: keeping board cores dry in sustained high humidity. We combine a moisture-resistant core, fully sealed edge banding and anti-mould treatment on all concealed faces.
Board options
Moisture-proof MDF, plywood, particle board
E0 / E1 emission grade
Finish
Melamine, PET, acrylic, UV lacquer
Colour matched to your sample
Edge banding
PVC / ABS, 1.0–2.0 mm
Fully sealed on all edges
Hardware
DTC, Blum, Hettich or nominated brand
Anti-corrosion coated
Customisation
Size, colour, layout, hardware, logo, packaging
Drawing approval before production
MOQ
1 × 20ft container
Mixed models accepted
Lead time
25–35 days
After deposit and drawing approval
Packing
Export carton, corner protection, moisture barrier
Reinforced edges
Specification Sheet
| Parameter | Standard | Notes |
|---|---|---|
| Carcass board | 18 mm moisture-proof MDF / plywood | E0 / E1, ENF or F★★★★ available |
| Door board | 18 mm, various finishes | Melamine, PET, acrylic, lacquer |
| Back panel | 5 mm / 9 mm | Anti-mould coated on request |
| Edge banding | PVC / ABS 1.0–2.0 mm | Fully sealed all four edges |
| Hinges | Soft-close, 110° / 165° | DTC / Blum / Hettich |
| Drawer runners | Ball-bearing or concealed soft-close | Load rated to 35 kg |
| Plinth / legs | Adjustable plastic or aluminium | 0–60 mm height adjustment |
| Waterproof seal | Silicon edge seal | Applied to all wet-area cut edges |
| Cabinet widths | 300 / 400 / 500 / 600 / 800 / 900 mm | Modular; custom widths on request |
| Cabinet depths | 560 / 580 / 600 mm | Base units; wall units 330 / 350 mm |
| Base height | 720 mm carcass + 100 / 150 mm plinth | Ergonomic for tropical kitchens |
| Door thickness | 18 mm (acrylic / PET) or 20 mm (lacquer) | Warp-resistant substrate |
| Lead time | 20–28 days after drawing approval | Sample 7–10 days |
| MOQ | 1 × 20ft container (mixed SKUs allowed) | Sample order available |
| Japan F★★★★ | F★★★★ (JIS A 1460 four-star) | Lowest emission tier for the Japanese market |
Edge Banding Process
Board edges are the first point of moisture ingress. Every visible and concealed edge is run through a hot-melt edge bander, trimmed flush, then buffed.
Export Packing Standard
Each unit is flat-packed with export carton, corner protection, moisture barrier film and reinforced edges, ready for a 20ft or 40HQ container.
Product Detail Gallery
Close-ups of carcass construction, edge sealing, hardware and export packing as shipped to Southeast Asia.
Finished kitchen run with moisture-proof carcass
Base cabinet and edge-sealed door detail
Board and finish samples: melamine, PET, acrylic, wood grain
Soft-close hinge, ball-bearing runner and handle

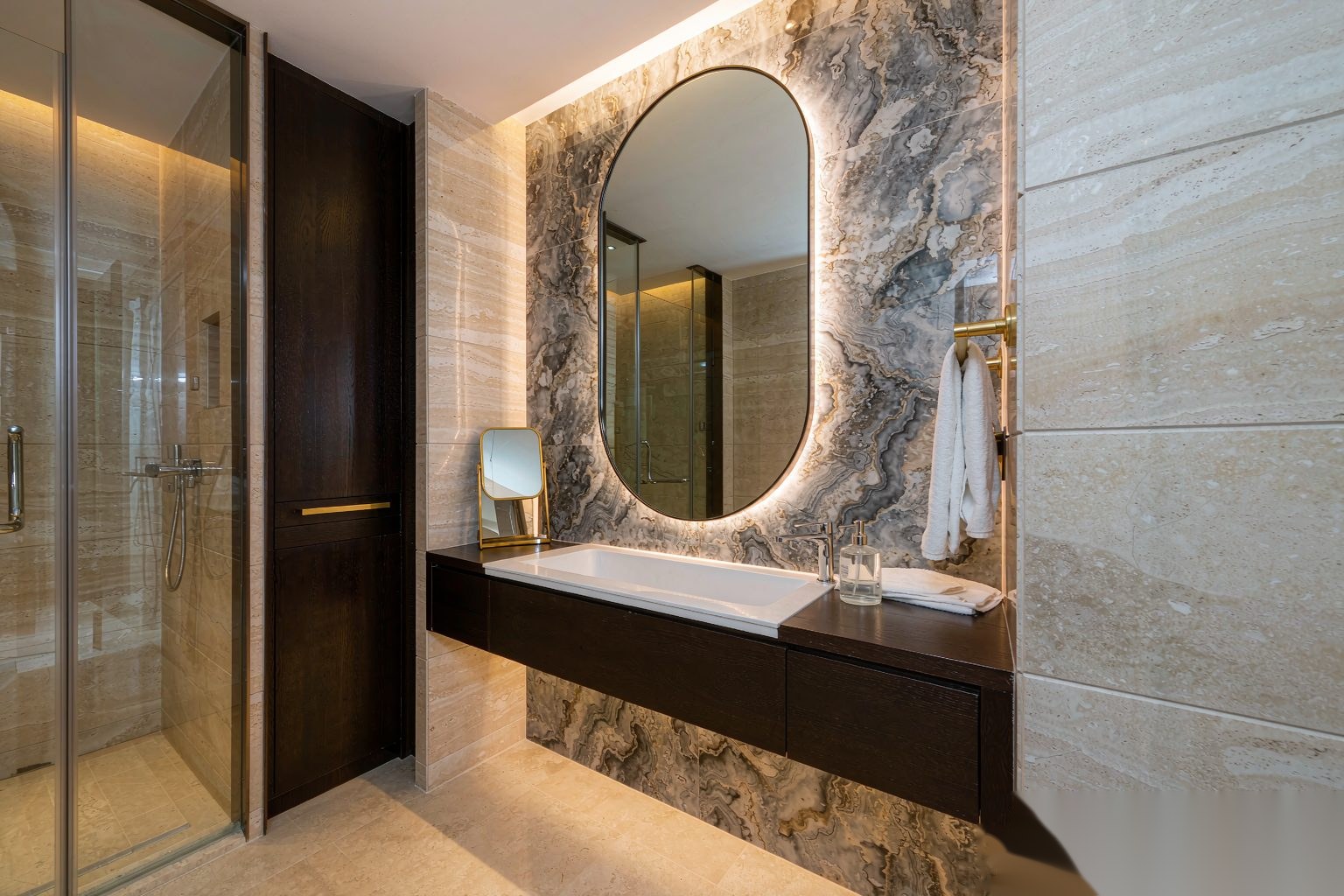

Vanity unit install in Ho Chi Minh City apartment
Flat-pack export carton with corner protection
Official Warranty Terms
Cabinet carcass and doors are warranted for 3 years; hardware (hinges, runners, dampers) for 5 years against manufacturing defects. Warranty covers replacement parts; it does not cover wall or electrical works, or damage from misuse, flooding or unauthorised modification.
